This is a Pattern document

Document icon PAT Streams Management Version: 0.1 OIAr logo
Document type: Pattern Type Owner:

J.A.H. Schoonderbeek


Informational
Informational
Create commentary

Description

This Pattern Type belongs to "Infrastructure Sector Business Support". ...

Graphical Overview

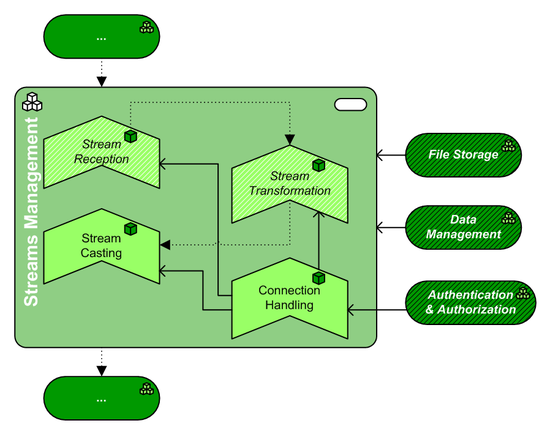

This is the graphical representation of the infrastructure functions in this Pattern Type, plus their main relations:

Streams Management
Streams Management


(The source file of this picture can be downloaded here).

Pattern Type Composition

This pattern has the following mandatory and optional subfunctions, expressed in Building Block Types:

Icon Function WA Inclusion Rationale
BT.Connection Handling icon Connection Handling NW mandatory ...
BT.Stream Casting icon Stream Casting SE mandatory ...
BT.Stream Reception icon Stream Reception SE optional ...
BT.Stream Transformation icon Stream Transformation SE optional ...


Pattern Type Neighbors

This pattern has the following mandatory and optional relations with adjacent (sub)functions, expressed in Pattern Types (PAT). Note: if the table below is empty, then there are no architecturally prescribed relations with adjacent subfunctions:

Function Adjacency Description
File Storage optional Streams may be read from, and/or recorded to, a storage system for loosely structured data, such as a file system.
Data Management optional Streams may be read from, and/or recorded to, a storage system for tightly structured data, such as a database. Furthermore, database may contain a directory or other information required to handle streams.
Authentication & Authorization optional When this pattern is used to create something like a telephony solution, authentication may be required.


Pattern Variants based on this type

No Patterns Variants implement this Type (yet)
